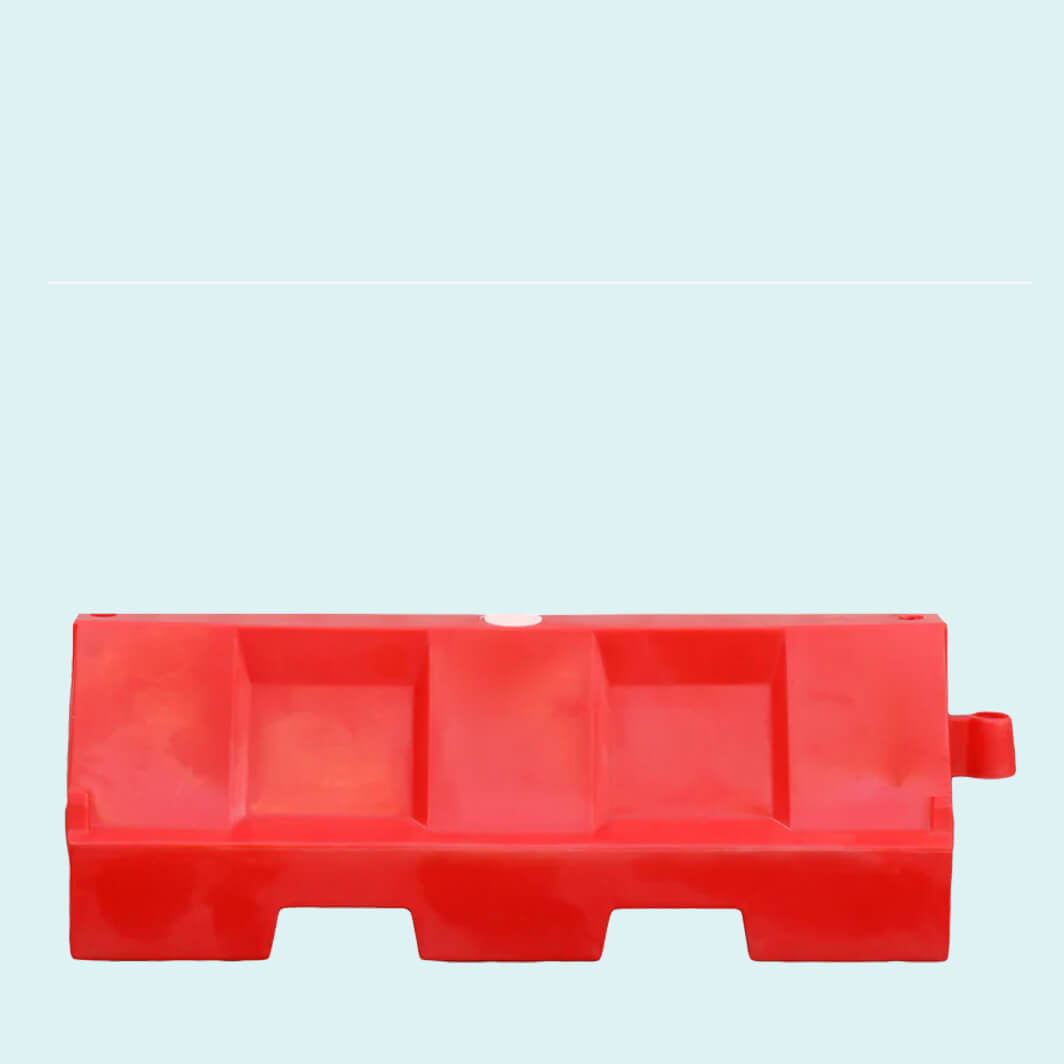

1.5m Evo Water-Filled Barrier

Product Overview:
The 1.5m Evo Water-Filled Barrier is a modular low-level separator used to define pedestrian routes, traffic lanes and restricted working areas. Its 1.5m working length covers longer runs efficiently, making it suitable for construction sites, roadworks, utilities, public events and commercial premises. Manufactured from UV-stabilised moulded polyethylene, each unit is lightweight enough to reposition when empty and weighs approximately 30kg once filled with water, providing a more stable temporary boundary.

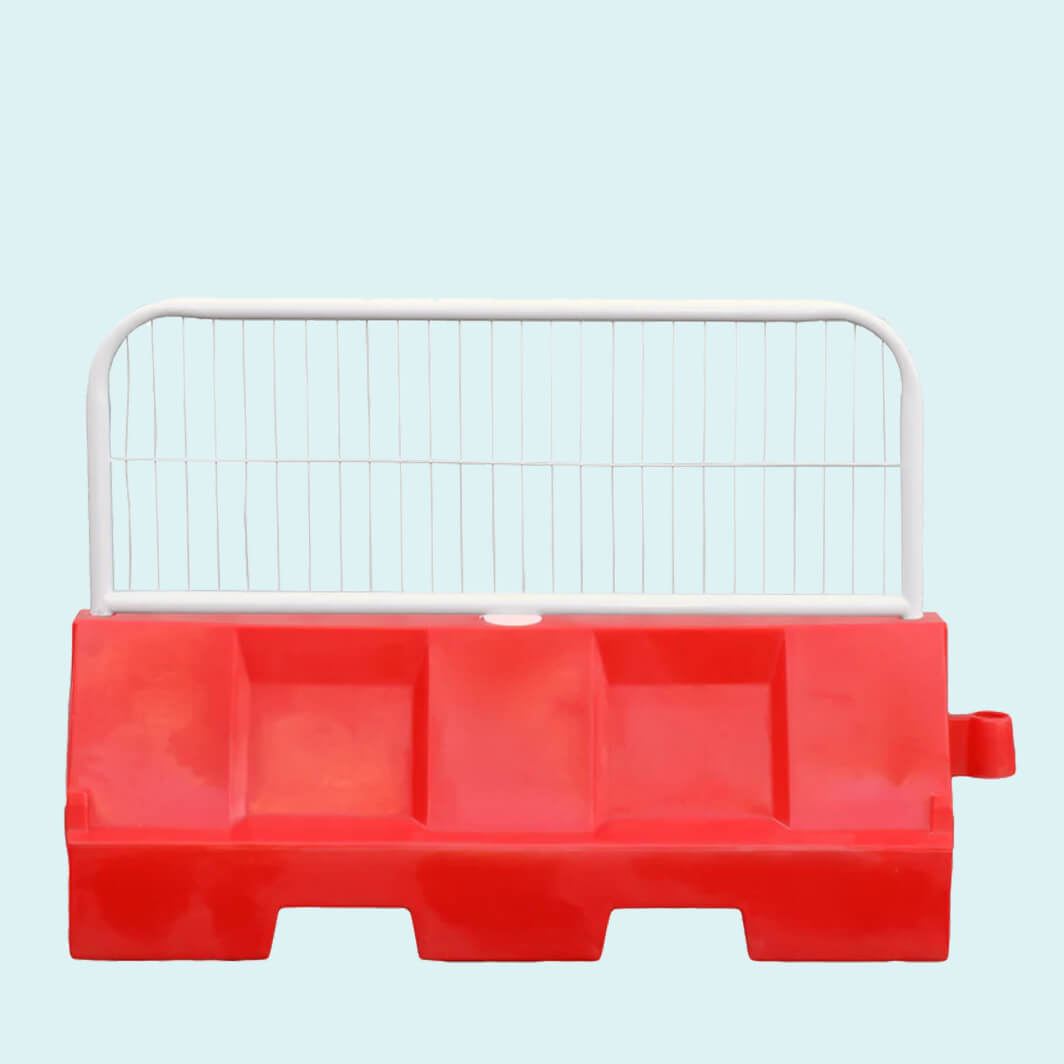

Integral male and female connection points link adjoining units into a continuous run with minimal gaps, while the stackable profile simplifies storage and transport between sites. Red and white colour options improve visibility around active work areas, and compatible mini-mesh or reflective plank systems can be added where greater height or route visibility is required. A separately available Evo Angle Barrier enables neat, gap-free 90-degree corners. The system is intended for pedestrian and traffic delineation rather than certified vehicle-impact protection, so the proposed layout, exposure and level of risk should be assessed before installation.

Key Features
• 1.5m working length covers temporary barrier runs efficiently
• Approximately 30kg when water-filled for improved stability
• Integral connections create continuous runs with minimal gaps
• UV-stabilised polyethylene withstands regular exterior use
• Lightweight when empty for straightforward site deployment
• Stackable design reduces transport and storage requirements
• High-visibility red and white colour options
• Compatible with Evo mesh and reflective plank systems

Typical Applications
• Construction Sites
• Roadworks and Highway Maintenance
• Utility Works
• Temporary Work Zones
• Pedestrian Route Management
• Public Events
• Commercial Premises
• Traffic and Site Delineation

Frequently Asked Questions:
Q. What are the dimensions of the 1.5m Evo Water-Filled Barrier?
A. The barrier has a working length of approximately 1500mm, an overall length of approximately 1600mm, a width of 400mm and a height of 555mm.

Q. How much does the Evo Barrier weigh when filled?
A. It weighs approximately 10kg when empty and 30kg when filled with water. Sand may also be used where appropriate, although the resulting weight will vary.

Q. Is the corner connection moulded into the barrier?
A. The male and female connections used for adjoining standard barriers are moulded into each unit. A separate Evo Angle Barrier is required to create a neat, gap-free 90-degree corner.

Q. Are mesh panels or reflective planks included?
A. No. Compatible mini-mesh and reflective plank systems are optional accessories and must be ordered separately unless expressly listed as included.

Q. Is the 1.5m Evo Barrier suitable for stopping moving vehicles?
A. No. It provides pedestrian and traffic delineation but is not a certified vehicle-impact barrier. A suitably tested restraint system should be used where impact protection is required.
