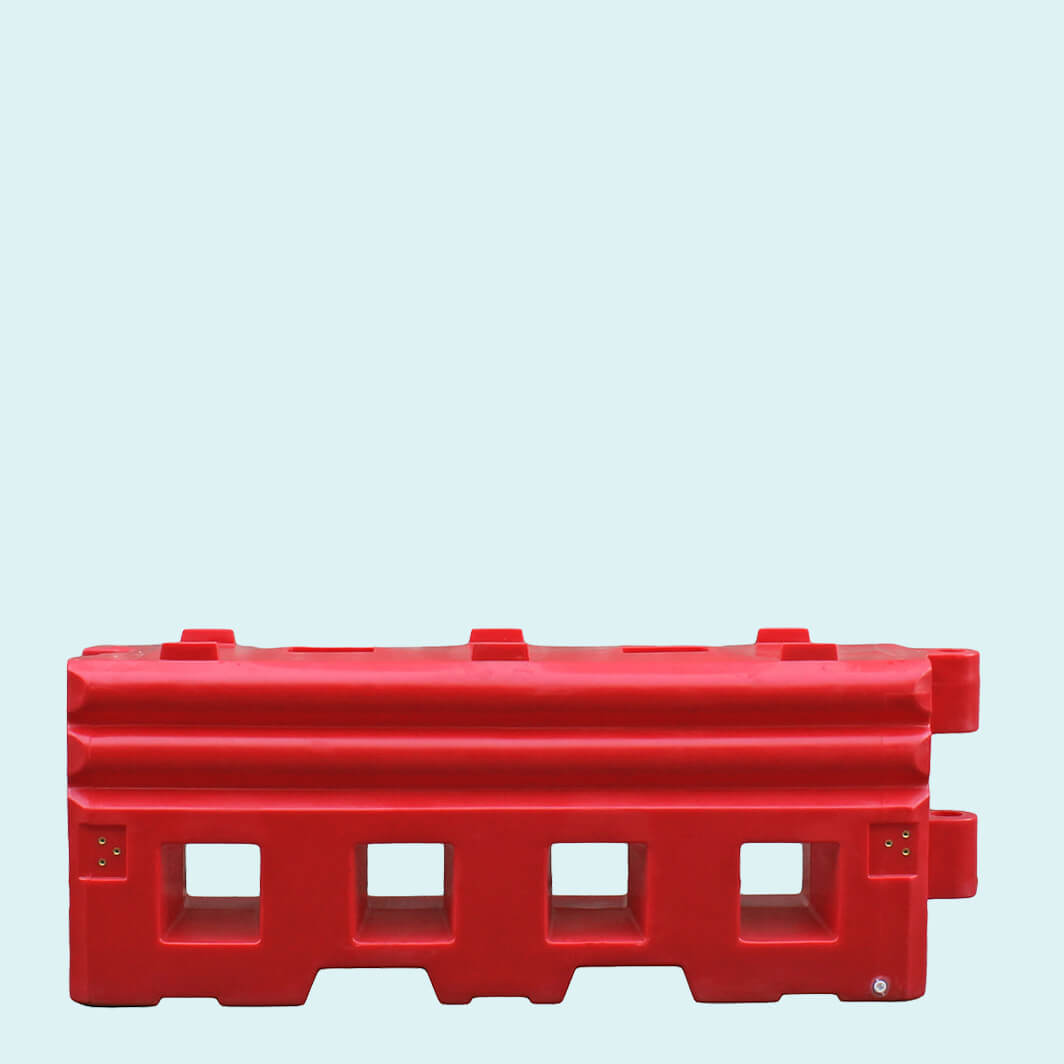

RB22 Crash-Tested Water-Filled Barrier
£393.50 ex VAT
Product Overview:
The RB22 Water-Filled Barrier is a heavy-duty, crash-tested traffic restraint system developed for roadworks, highway maintenance and construction zones where vehicle separation requires verified performance. Connected in the approved configuration and filled to the specified level, the system is tested to BS EN 1317 N1 at 50mph. Each unit weighs approximately 60kg empty and up to 600kg when filled, combining manageable deployment with substantial on-site ballast.

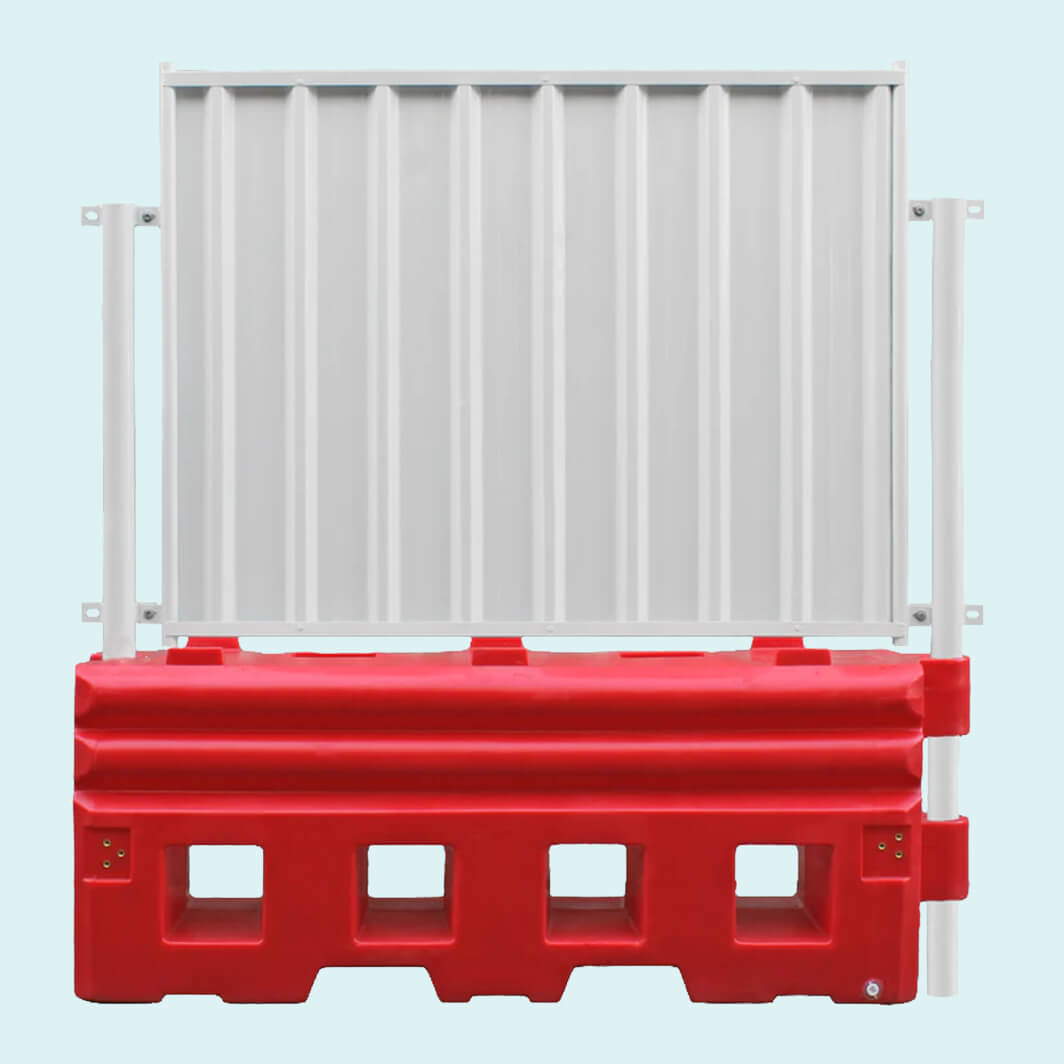

Manufactured from UV-stabilised moulded polyethylene, the RB22 uses steel linking pins and side plates to create secure continuous runs while accommodating gradual changes in direction. The correctly filled barrier has also been MIRA wind tested to 78mph, supporting exposed applications subject to a site-specific assessment. Red and white colour options improve visibility, while integrated forklift channels assist handling after positioning. Compatible mesh fencing, steel hoarding, pedestrian gates and vehicle gates provide increased perimeter height, screening and controlled access. Crash performance applies only when the complete system is installed according to the tested manufacturer configuration.
Key Features
• Crash tested to BS EN 1317 N1 at 50mph
• Up to 600kg filled weight provides heavy-duty stability
• MIRA wind tested to 78mph when correctly water-filled
• Steel linking pins and side plates create secure continuous runs
• UV-stabilised polyethylene supports prolonged exterior use
• Integrated forklift channels assist site handling and positioning
• Connections accommodate gradual curves and directional changes
• Compatible with mesh, hoarding and controlled-access gate systems
Typical Applications
• Highway Maintenance
• Roadworks and Lane Closures
• Temporary Traffic Management
• Construction Sites Adjacent to Live Traffic
• Utilities and Street Works
• Infrastructure Projects
• Pedestrian Protection Routes
• High-Risk Temporary Work Zones
Frequently Asked Questions:
Q. Is the RB22 certified for vehicle-impact protection?
A. The complete RB22 system is crash tested to BS EN 1317 N1 at 50mph. This performance only applies when the barriers are correctly connected, filled and installed in the tested configuration.
Q. What are the dimensions and filled weight of an RB22 Barrier?
A. Each unit measures approximately 2000mm long, 800mm high and 500mm deep. It weighs approximately 60kg empty and 600kg when filled with around 540 litres of water.
Q. Can the RB22 system accommodate corners and curves?
A. Standard connections accommodate changes in direction of up to approximately 35 degrees. Dedicated RB22 angle sections are required for neat 90-degree corners.
Q. What wind speed has the RB22 Barrier been tested to?
A. A correctly water-filled RB22 Barrier has been MIRA wind tested to 78mph. Local exposure, ground conditions and any fitted upper panels must still be assessed.
Q. Are mesh panels, hoarding and gates included?
A. No. Compatible mesh fence panels, steel hoarding panels and pedestrian or vehicle gates are separate options unless expressly listed as included.
