Steel Palisade Triple-Pointed ‘W’ Section Systems – CALCULATOR NEEDS CREATING (Per Bay or Per Meter)

Product Overview:

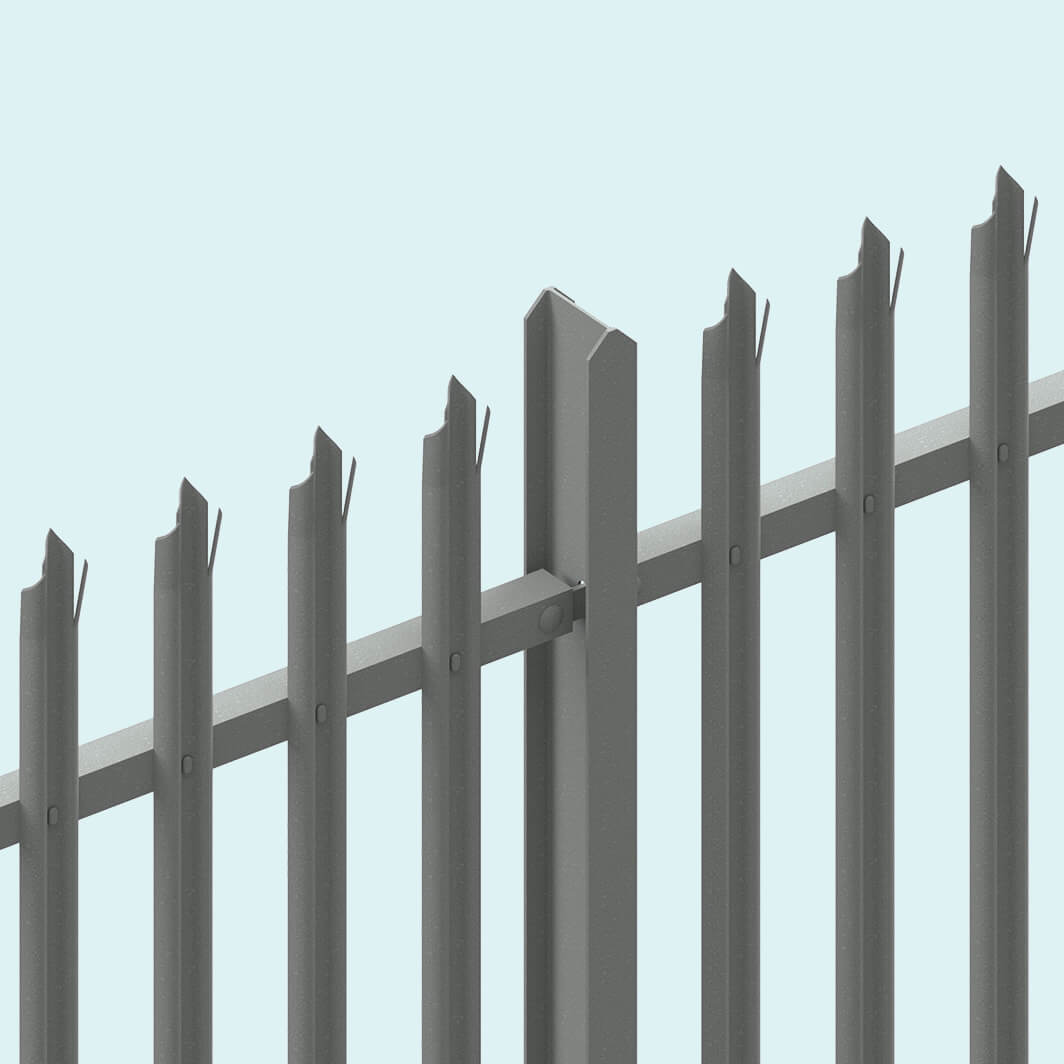

Steel Palisade Triple-Pointed ‘W’ Section Systems create a robust permanent perimeter using pressed steel pales fixed to horizontal rails between structural posts. The W-section profile adds stiffness and resistance to bending, while the triple-pointed heads provide a strong visual and physical deterrent against climbing. Supplied in modular 2.75m bays, the system is suited to commercial, industrial and infrastructure sites requiring dependable boundary protection without blocking visibility through the fence line.

The standard 2.0mm W-section pales and galvanised finish provide a practical balance of strength, corrosion resistance and manageable installation. Bolted construction allows individual pales or rails to be replaced if damaged, helping reduce long-term maintenance costs. This system is commonly chosen for warehouses, utility compounds, manufacturing premises and other controlled perimeters where a more formidable barrier is required than decorative railings or general-purpose mesh. Correct post foundations, gate planning and allowances for corners or changes in direction are essential to achieve a secure, aligned installation.

What’s Included
Each 2.75m system set includes:

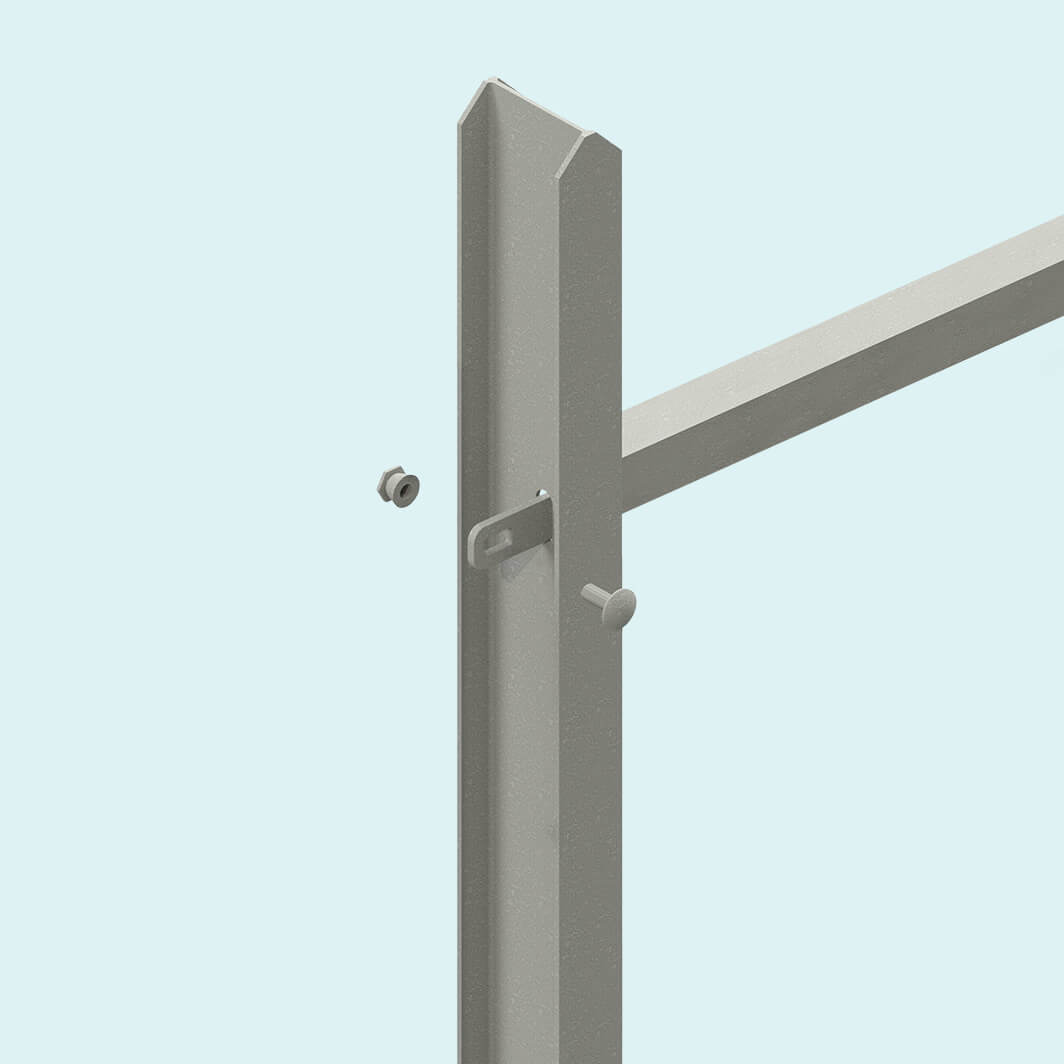

• 1 x Palisade Post
• 2 x Palisade Back Rails

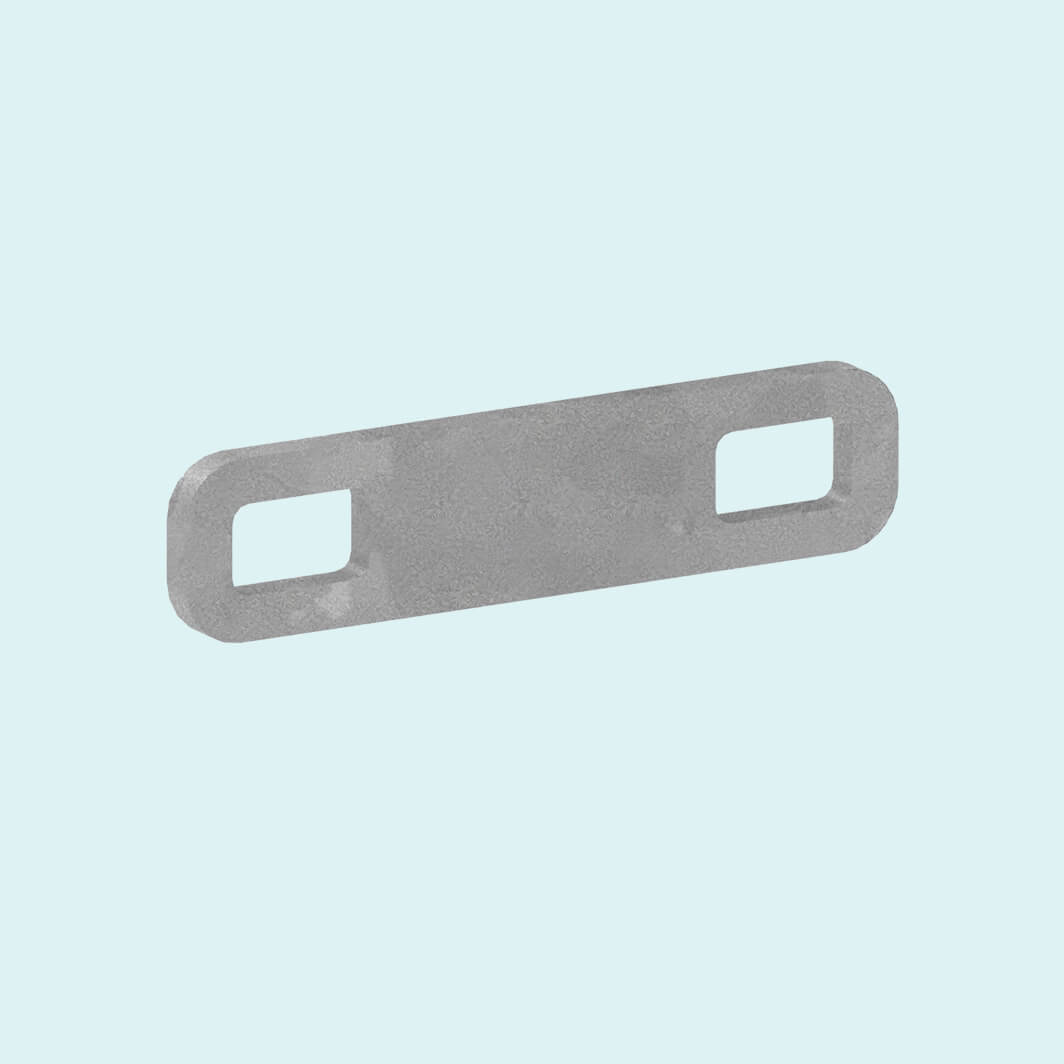

• 2 x Fish Plates
• 4 x M12 x 35mm Nuts and Bolts

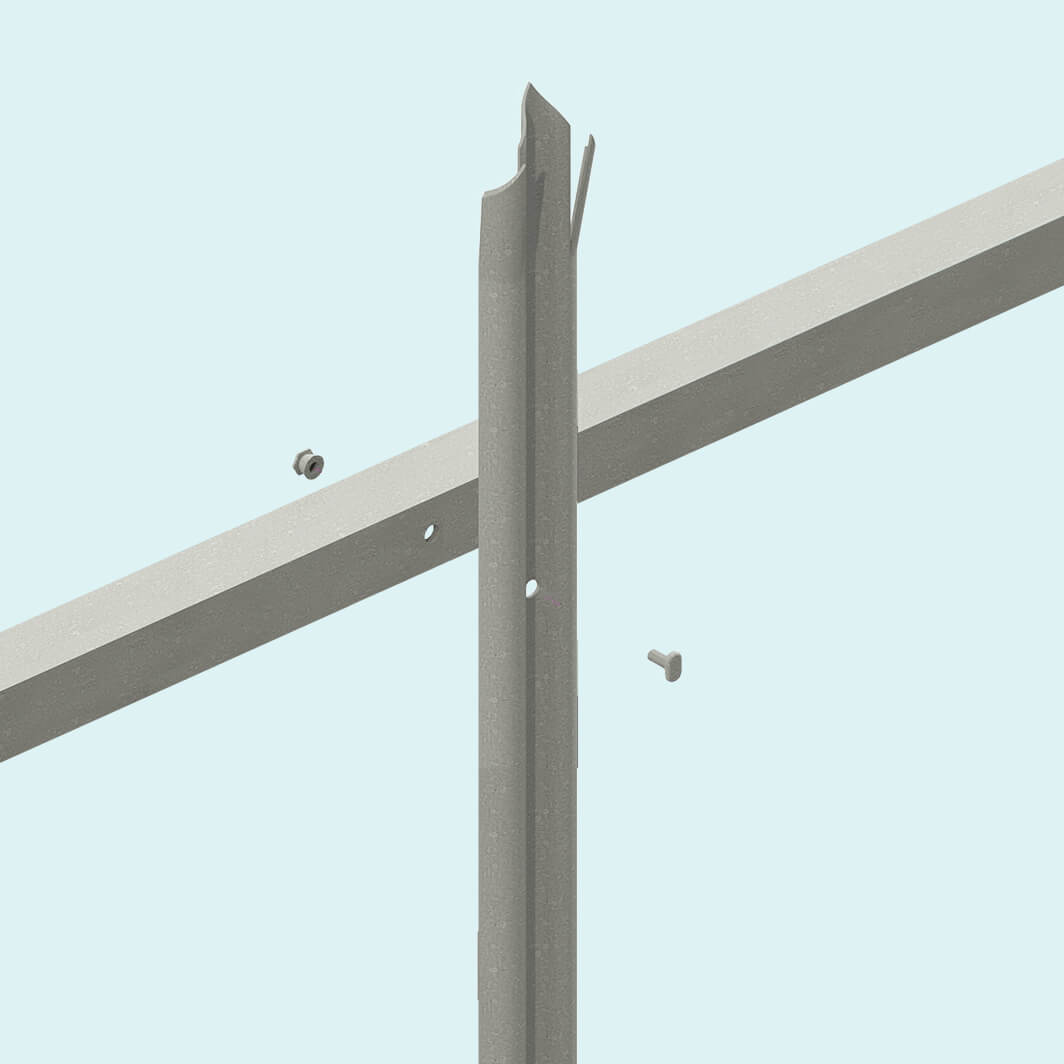

• 17 x Triple-Pointed ‘W’ Section Pales

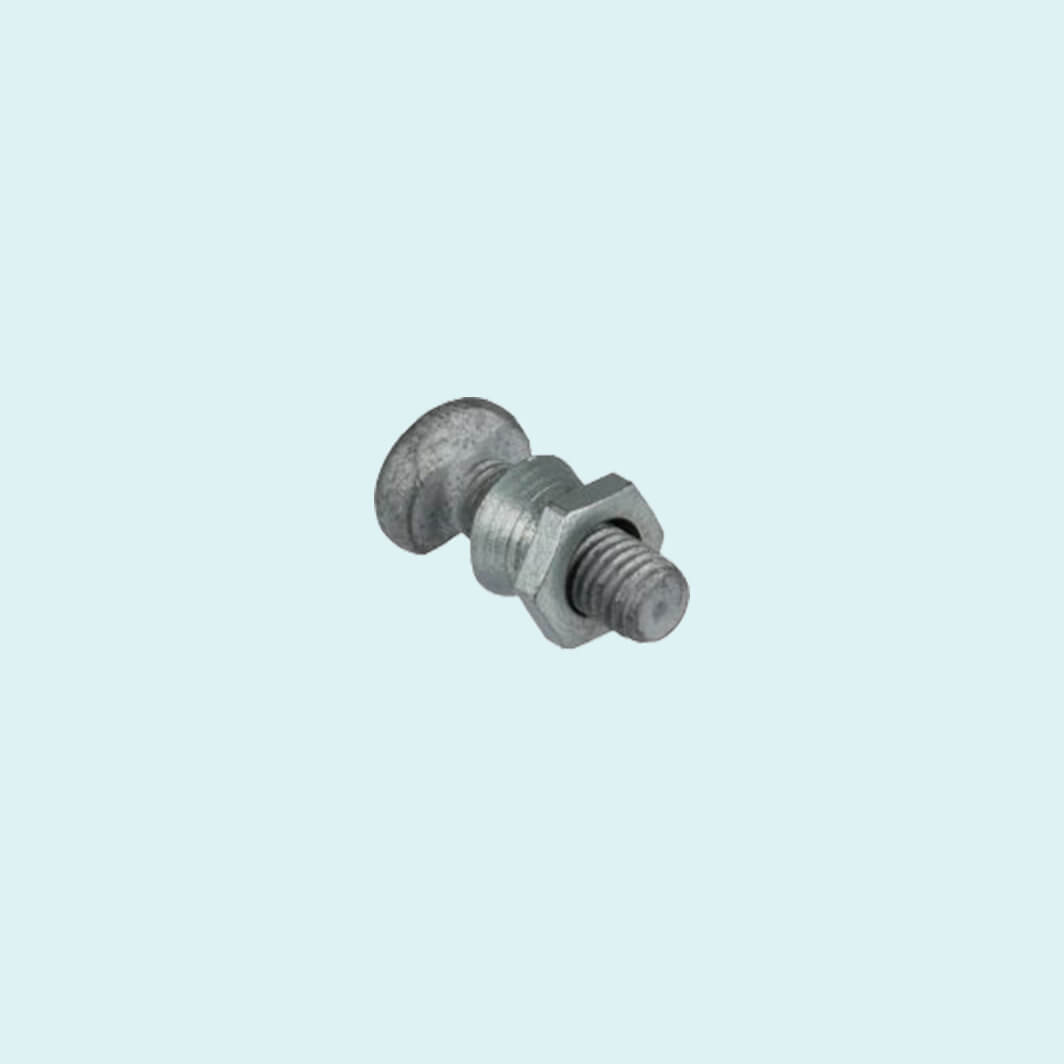

• 34 x Saddlehead M8 x 35mm Nuts and Bolts

You May Also Need
• Post mix or suitable concrete for installing in-ground posts
• Additional posts or fittings for ends, corners, returns, gate openings and changes in direction
• Matching steel palisade gates where controlled access is required

Key Features
• Triple-pointed pale heads provide a visible and physical climbing deterrent
• Pressed W-section pales offer greater stiffness and resistance to bending
• Galvanised steel construction provides long-term corrosion protection
• Open pale arrangement maintains visibility through the secured perimeter
• Modular 2.75m bays support efficient planning and installation
• Bolted assembly allows individual damaged components to be replaced
• Suitable for permanent commercial and industrial perimeter security
• Low-maintenance construction supports a long operational service life

Typical Applications
• Industrial premises
• Warehouses and distribution centres
• Manufacturing facilities
• Utility compounds and substations
• Infrastructure sites
• Commercial storage yards
• Construction and plant compounds
• Public-sector facilities

Frequently Asked Questions:
Q. Does each system set cover 2.75m?
A. Yes. Each system set forms a nominal 2.75m bay. The required number of sets should be calculated from the total straight-run meterage.

Q. Will I need additional posts?
A. Straight continuous runs can be calculated from the selected meterage. Ends, corners, returns, gate openings and changes in direction may require additional posts or fittings.

Q. Are the posts installed in the ground?
A. The standard system uses in-ground posts secured in suitable concrete foundations. Bolt-down posts may be available where an appropriate structural concrete base already exists.

Q. Can steel palisade fencing follow sloping ground?
A. Palisade fencing can usually be stepped across sloping ground. Minor gradients may be accommodated differently depending on the layout, so steep or uneven sites should be assessed before ordering.

Q. Are alternative finishes available?
A. The standard system is supplied galvanised. Alternative finishes and pale configurations may be available on request, subject to specification, quantity and lead time.
