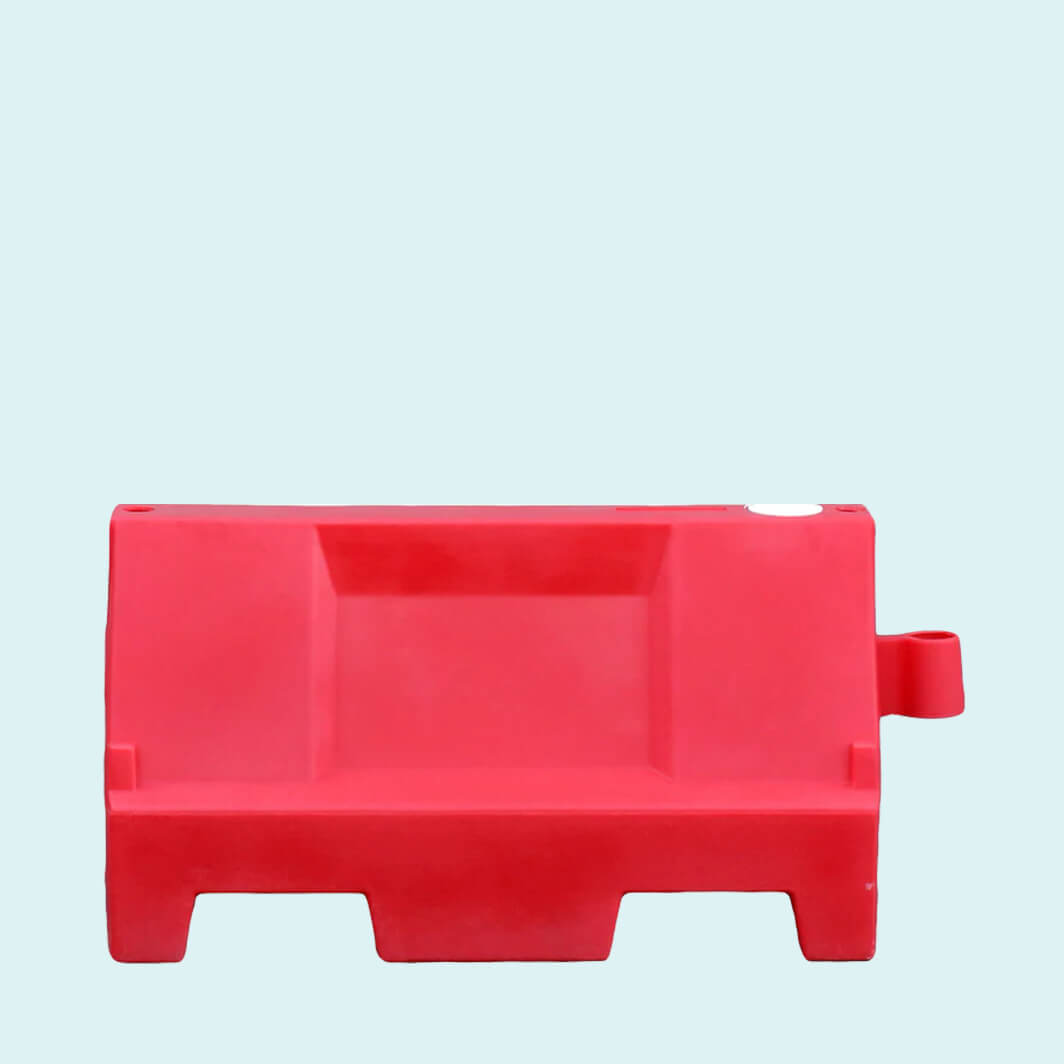

1m Pyramid Water-Filled Barrier

Product Overview:
The 1m Pyramid Water-Filled Barrier is a compact, interlocking traffic-management barrier designed for low-level pedestrian and vehicle delineation. Its 1m working length suits construction sites, roadworks, utilities, public events and restricted work areas where a clearly visible temporary boundary is required. Manufactured from UV-stabilised moulded polyethylene, it is lightweight when empty for straightforward handling and reaches approximately 55kg when filled with water, helping resist casual movement or tampering.

Unlike many comparable barriers, the Pyramid’s integral connection allows adjoining units to rotate through a full 90 degrees without specialist corner sections. This enables contractors to create straight runs, tight returns and boxed-off working areas using the same barrier units. Red and white colour options support clear site demarcation, while the stackable profile reduces transport and storage space between projects. An optional compatible mesh fence topping can raise the overall system height to approximately 1m where greater visibility and pedestrian guidance are needed. The barrier is intended for temporary delineation rather than certified vehicle-impact protection.

Key Features
• Approximately 55kg when water-filled for improved stability
• Integral connection accommodates full 90-degree corners
• UV-stabilised moulded polyethylene withstands outdoor use
• Lightweight when empty for easier positioning and deployment
• Stackable profile reduces transport and storage requirements
• Red and white options provide clear visual demarcation
• Interlocking design creates continuous temporary barrier runs

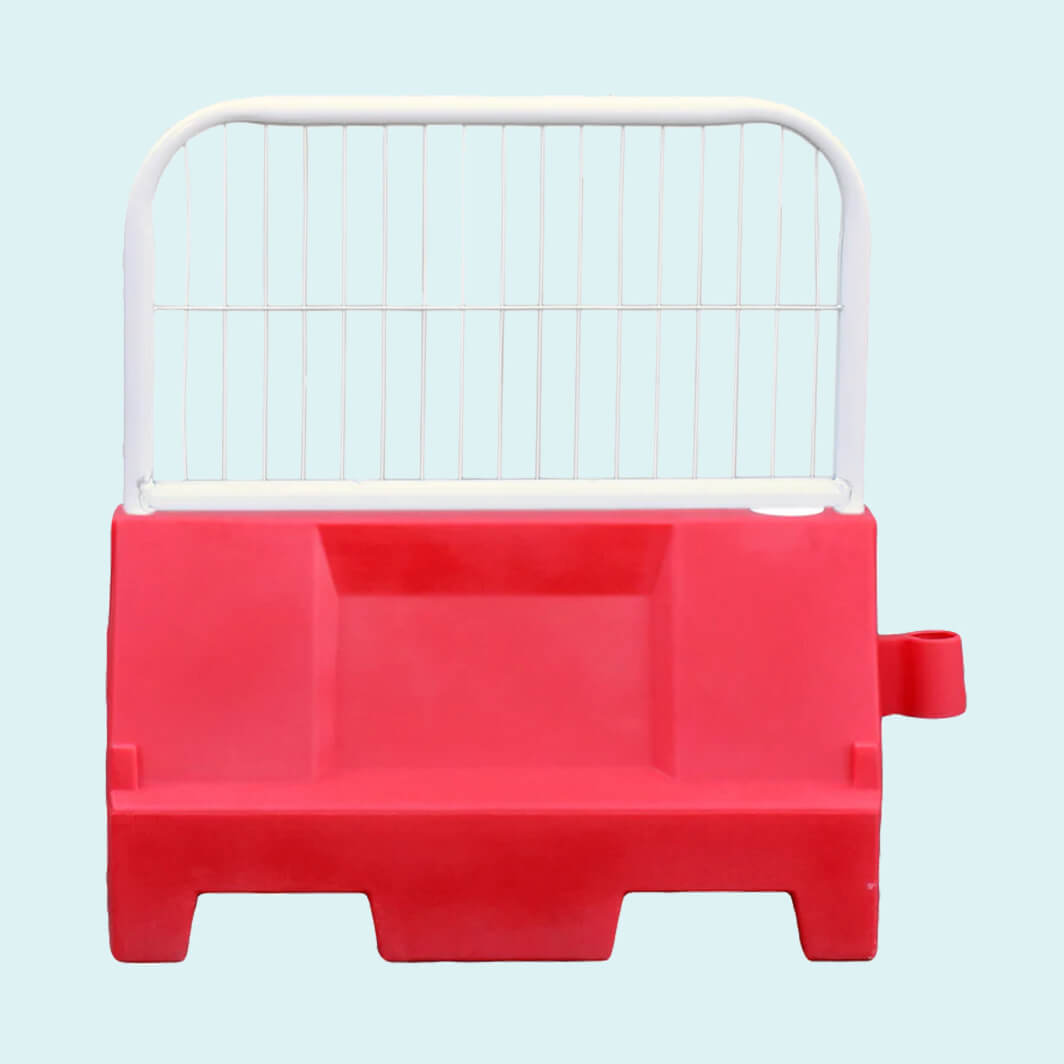

• Compatible mesh fence topping available for additional height

Typical Applications
• Construction Sites
• Roadworks and Highway Maintenance
• Utility Works
• Temporary Work Zones
• Pedestrian Route Management
• Public Events
• Restricted Access Areas
• Traffic and Site Delineation

Frequently Asked Questions:
Q. What are the dimensions of the 1m Pyramid Water-Filled Barrier?
A. The barrier has a working length of approximately 1000mm, an overall length of approximately 1100mm, a width of 400mm and a height of 555mm.

Q. How much does the Pyramid Barrier weigh when filled?
A. It weighs approximately 6kg when empty and reaches approximately 55kg when filled with water to the manufacturer’s indicated level.

Q. Can the barrier form 90-degree corners?
A. Yes. Its integral connection allows adjoining Pyramid Barriers to rotate through a full 90 degrees without requiring a separate specialist corner section.

Q. Is the mesh fence topping supplied with the barrier?
A. No. The compatible mesh fence topping is an optional accessory and must be ordered separately unless expressly stated as included.

Q. Is the Pyramid Barrier suitable for stopping moving vehicles?
A. No. It is intended for low-level traffic and pedestrian delineation rather than certified vehicle-impact protection. A suitably tested system should be selected where impact resistance is required.
