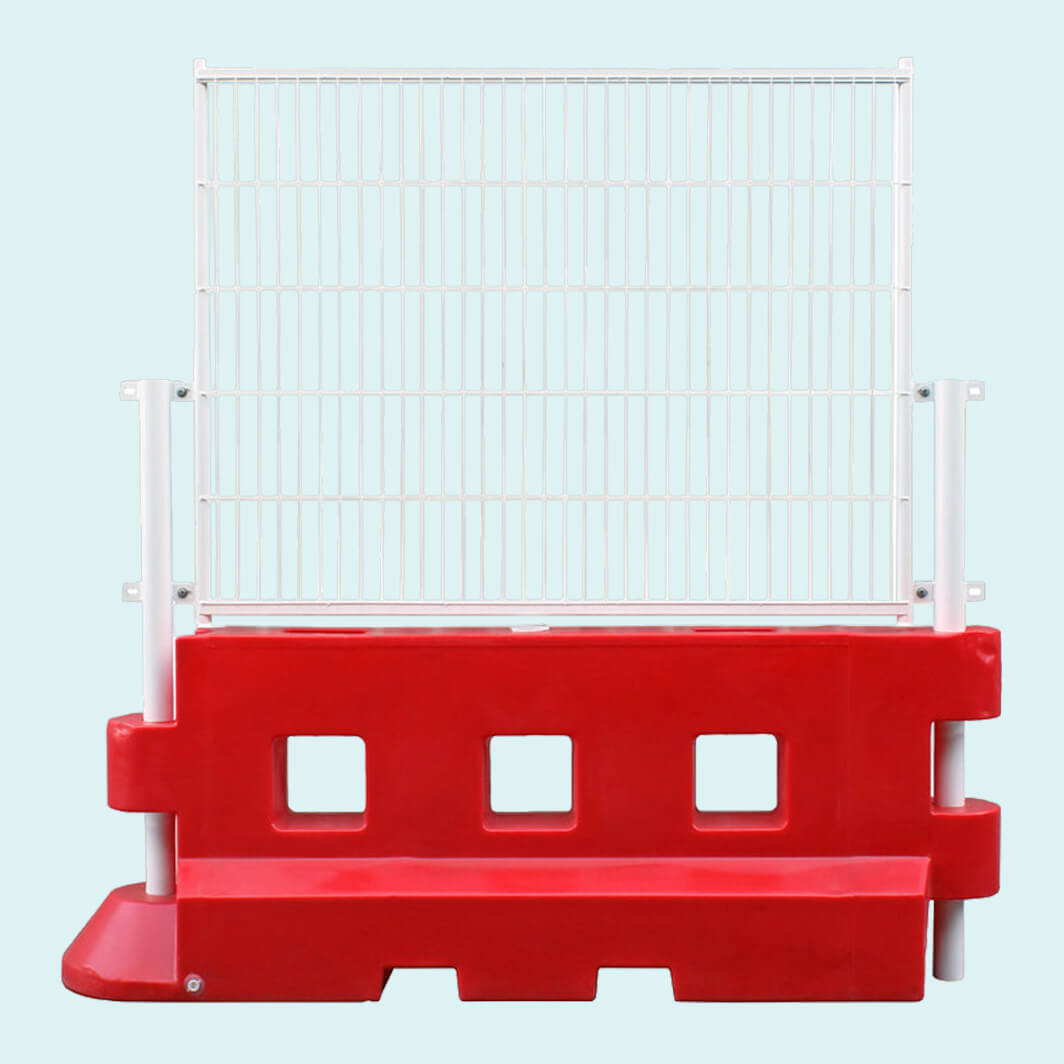

GB2 2m Water-Filled Barrier – Mesh Fence Panel
£100.16 ex VAT
Product Overview:
The GB2 2m Water-Filled Barrier – Mesh Panel is a powder-coated steel anti-climb topping designed specifically for the GB2 2m barrier. Installed above the water-ballasted base, it increases the completed system height to approximately 2.3m while preserving visibility across the boundary. This makes it suitable for construction sites, roadworks, infrastructure projects and public events where contractors need clear separation between pedestrians, vehicles and active working areas.
The welded mesh discourages unauthorised access without obstructing supervision or traffic-management sightlines. A correctly filled GB2 barrier weighs approximately 350kg, providing a stable, non-permanent base, while adjoining units can follow gradual changes in direction through angles of up to 35 degrees. In the manufacturer’s standard filled configuration, the barrier and mesh panel assembly has been MIRA wind tested to 77.9mph. The panel can be removed and reused as layouts change, although site exposure, ground conditions, corners and gate openings must still be assessed before installation.
Key Features
• Anti-climb welded mesh increases temporary perimeter height
• Approximately 2.3m overall system height when installed
• Open mesh maintains visibility and surveillance sightlines
• Powder-coated steel construction for exterior durability
• Standard filled assembly MIRA wind tested to 77.9mph
• Compatible GB2 base weighs approximately 350kg when filled
• Barrier connections accommodate angles of up to 35 degrees
• Removable and reusable for changing site layouts
Typical Applications
• Construction Site Boundaries
• Roadworks and Highway Maintenance
• Infrastructure Projects
• Utilities and Service Compounds
• Temporary Work Zones
• Public Events and Crowd Management
• Pedestrian and Traffic Segregation
• Restricted Access Areas
Frequently Asked Questions:
Q. Is the GB2 water-filled barrier included with the mesh panel?
A. No. This product is the mesh panel designed for use with the compatible GB2 2m Water-Filled Barrier, which is purchased separately unless stated otherwise.
Q. What are the dimensions of the GB2 mesh panel?
A. The panel measures approximately 1790mm wide, 1400mm high and 40mm deep. When installed, the complete system is approximately 2.3m high.
Q. Are the connection components supplied with the panel?
A. Check the selected product specification before ordering. Compatible GB2 support and connection components may need to be purchased separately if they are not expressly listed as included.
Q. What wind speed has the completed system been tested to?
A. The mesh panel and correctly filled GB2 barrier assembly has been MIRA wind tested to 77.9mph in the manufacturer’s standard configuration. Site-specific conditions must still be assessed.
Q. Can the system accommodate corners and gate openings?
A. Connected GB2 barriers can form angles of up to 35 degrees. Gate openings require compatible gate components, while complex layouts should be checked before ordering.
