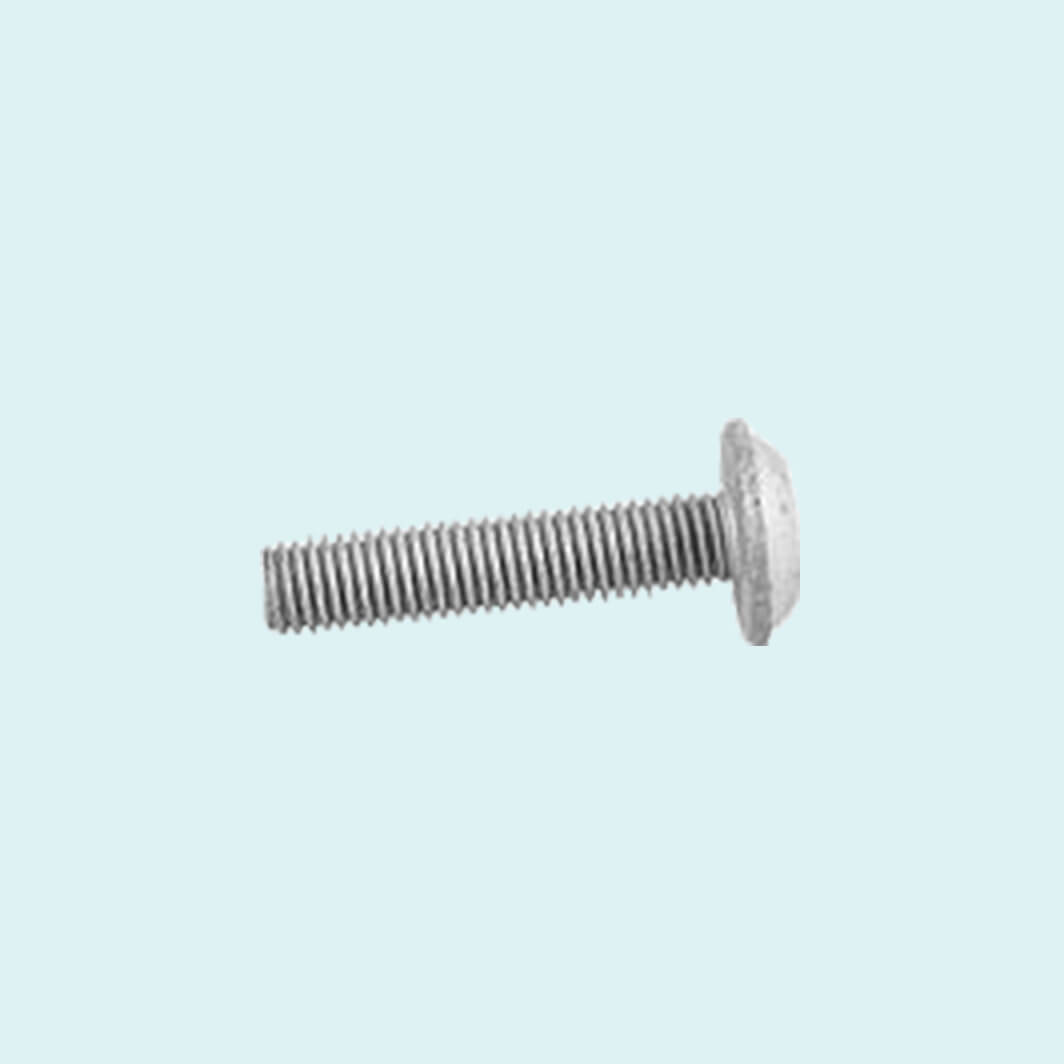

Flange Head IP4-1 Two-Way Security Screw M8 Thread – 40mm

Product Overview:
The Flange Head IP4-1 Two-Way Security Screw M8 Thread – 40mm provides a controlled, high-security fixing for commercial mesh fencing installations. Its specialist IP4-1 drive is designed to be installed and removed only with the corresponding tool supplied exclusively by Integrity, reducing the risk of interference using commonly available Pin Torx, Pin Hex or standard drive bits. The flange head distributes pressure across the fixing point, supporting secure attachment of compatible mesh clips, clamp bars and fencing components.

Manufactured from hardened steel, the screw offers significantly improved resistance to drilling, sawing and other attempted attacks. A corrosion-resistant surface finish provides up to 1,000 hours of protection, making it suitable for exposed commercial, industrial and infrastructure environments. Versions may be manufactured with under-head anti-vibration serrations where required. The IP4-1 design is EU registered under number 22462363-01. To protect the security of the drive system, availability is restricted to approved OEM customers, so eligibility should be confirmed before ordering.

Key Features
• Restricted IP4-1 drive helps prevent removal using commonly available tools
• Hardened construction increases resistance to drilling and sawing attacks
• Two-way design allows authorised installation and controlled removal
• Flange head distributes pressure across compatible fencing fixings
• Corrosion-resistant surface finish tested for up to 1,000 hours
• Available with optional under-head anti-vibration serrations
• Suitable for demanding commercial and higher-security environments
• EU registered design provides a controlled proprietary fixing system

Typical Applications
• Security Mesh Fencing
• 358 Prison Mesh Systems
• Twin Wire Mesh Fencing
• Commercial Perimeter Fencing
• Data Centres
• Utilities and Energy Sites
• Industrial Premises
• Infrastructure Projects
• Public-Sector Installations

Frequently Asked Questions:
Q: Which tool is required to install this security screw?
A: The screw requires the matching IP4-1 security drive tool. Standard Torx, Pin Torx, Hex and Pin Hex bits are not compatible.

Q: Can the screw be removed after installation?
A: Yes. The two-way drive allows authorised removal using the correct IP4-1 tool, supporting future repairs, panel replacement and maintenance.

Q: Is the IP4-1 drive bit available to everyone?
A: No. The circulation of matching drive bits is controlled to protect the security of the system. The IP4-1 range is only available to approved OEM customers.

Q: Does every screw include anti-vibration serrations?
A: Not necessarily. The screws can be manufactured with or without under-head anti-vibration serrations, so check the selected product specification before ordering.

Q: Is this security screw suitable for outdoor fencing?
A: Yes. Its corrosion-resistant surface finish provides up to 1,000 hours of protection, supporting long-term use in exposed perimeter fencing environments.
