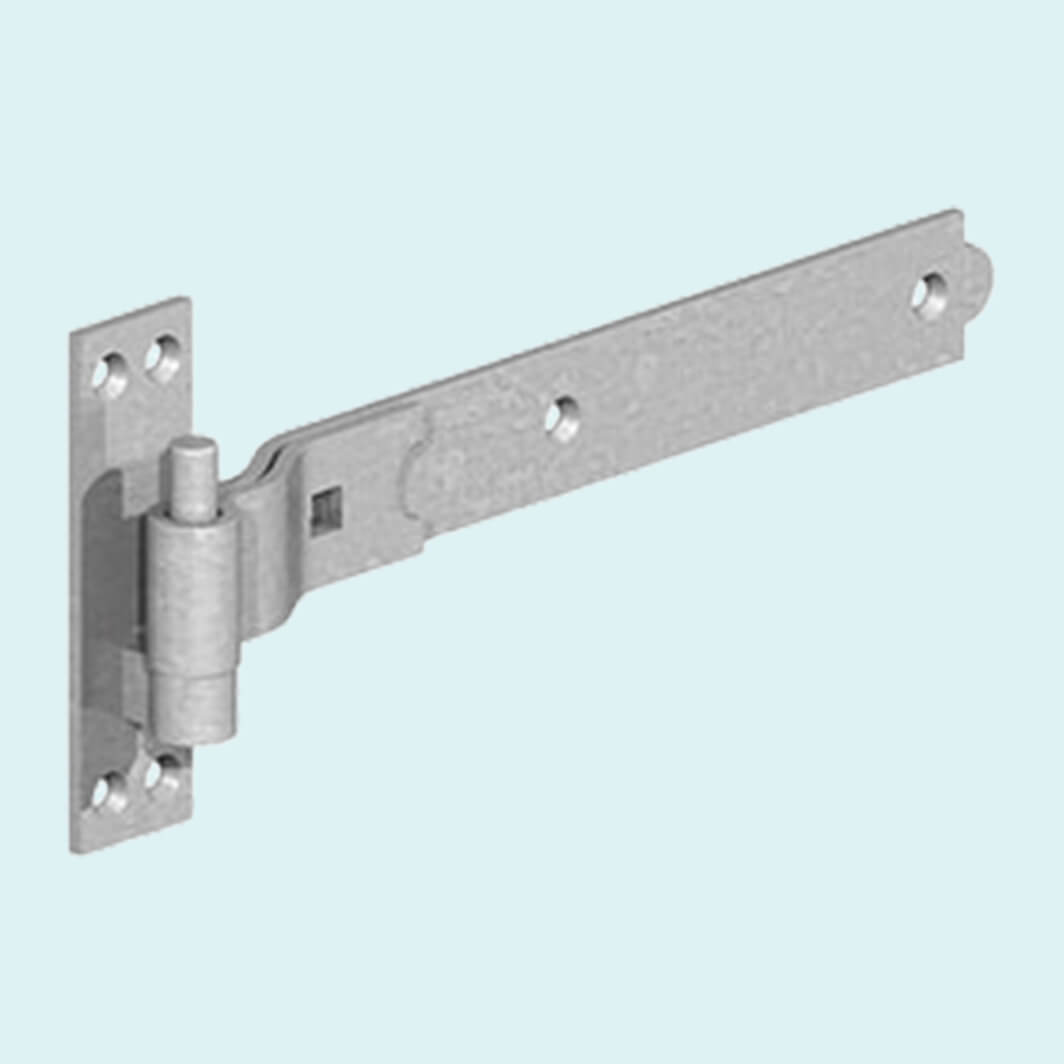

Cranked Band & Hook On Plate – 12″ 300mm Galvanised (GATEMATE®) – Pair
£15.54 ex VAT
Product Overview:
Cranked Band & Hook On Plate – 12″ 300mm Galvanised (GATEMATE®) – Pair is a traditional hinge set for hanging smaller to medium-sized timber gates. Each cranked band fits to the gate and locates over a hook plate secured to the supporting post. The cranked shape offsets the gate from the pivot point, allowing its front face to sit flush with the front of the post when closed.
This configuration is commonly used for garden gates, side gates and timber access gates where neat alignment and reliable everyday operation are required. Galvanised steel construction provides corrosion resistance for exposed outdoor installations, while the 300mm bands distribute the load across the gate framework. The lift-off design also allows the gate to be removed in the open position for maintenance. These are fixed rather than adjustable hinges, so the hook plates must be positioned accurately and fitted to a sound gate post.
What’s Included:
Toggle• 2 x 300mm (12″) Cranked Bands
• 2 x Hook-On Plates
• 1 x Pack of Required Fixings
You May Also Need:
Toggle• Suitable timber gate
• Timber gate post
• Ring gate latch or Suffolk latch
• Brenton padbolt or other locking device
• Post mix for installing a new gate post
• Timber treatment for exposed drilled or cut surfaces
Key Features:
Toggle• Cranked bands allow the gate face to sit flush with the front of the post
• Separate hook plates provide secure mounting to the supporting post
• 300mm bands distribute the load across the timber gate framework
• Lift-off design simplifies gate removal for maintenance
• Galvanised finish provides corrosion resistance for outdoor use
• Supplied as a complete pair for hanging one gate
• Required installation fixings are included
• Suitable for new installations and replacement gate hardware
Frequently Asked Questions:
ToggleQ. What is the purpose of the cranked hinge shape?
A. The crank offsets the hinge pivot, allowing the closed gate to sit flush with the front face of the gate post.
Q. Is this pack sufficient for hanging one gate?
A. Yes. It contains two cranked bands, two hook-on plates and the required fixings for one compatible timber gate.
Q. Can the gate be removed after installation?
A. Yes. The bands can be lifted from the hook plates while the gate is open, making removal easier for maintenance or repair.
Q. Are these hinges adjustable?
A. No. The fixed hook plates require accurate positioning during installation. Choose adjustable band and hook hinges if ongoing alignment adjustment is required.
Q. Are the hinges suitable for outdoor use?
A. Yes. The galvanised finish improves corrosion resistance, although occasional inspection and maintenance remain advisable in exposed or coastal locations.
