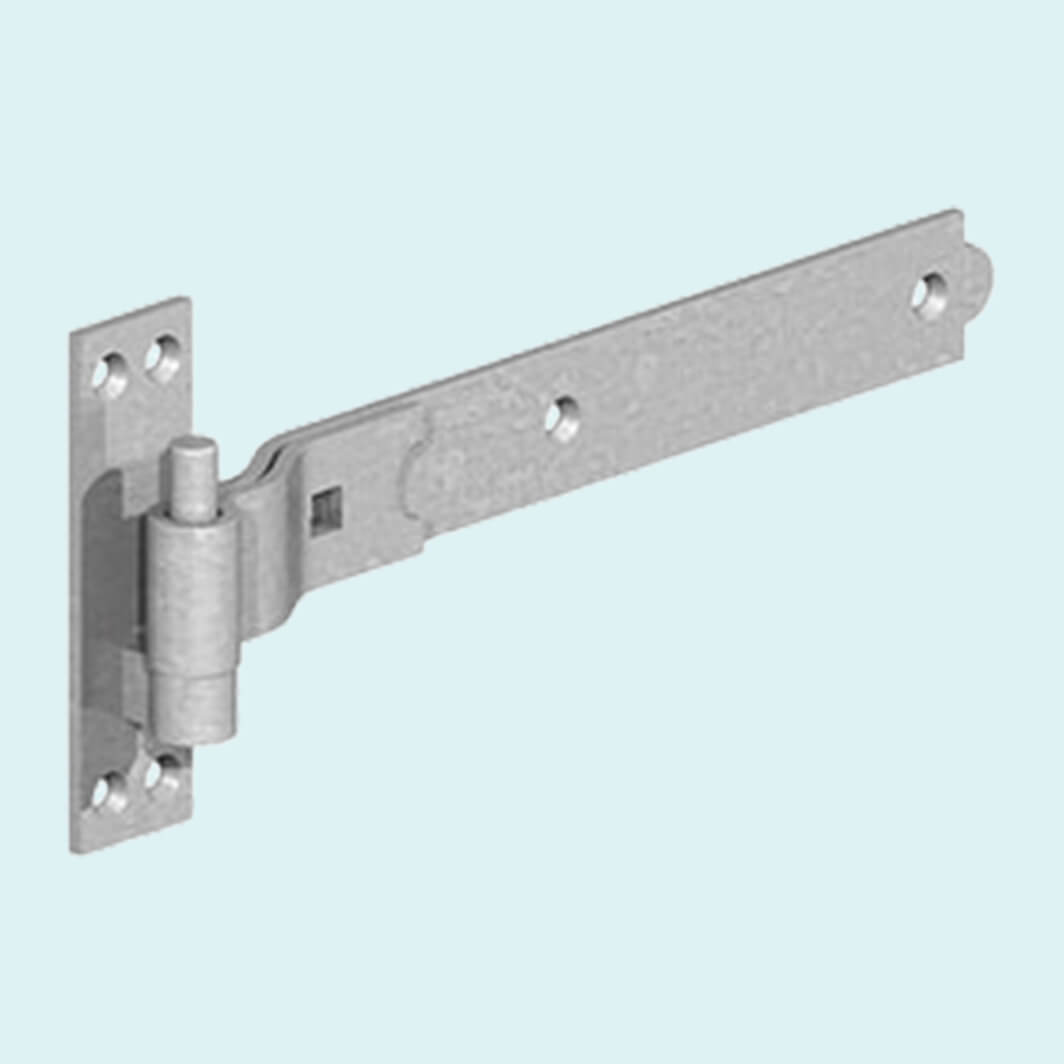

Cranked Band & Hook On Plate – 18″ 450mm Galvanised (GATEMATE®) – Pair
£24.29 ex VAT
Product Overview:
Cranked Band & Hook On Plate – 18″ 450mm Galvanised (GATEMATE®) – Pair provides a robust hinge arrangement for hanging medium to large timber gates. Each 450mm cranked band attaches across the gate framework and locates over a hook plate secured to the supporting post. The cranked shape offsets the pivot position so the front face of the closed gate can sit flush with the front of the post.
The longer bands distribute the gate load across a wider area than the 300mm version, reducing concentrated stress around the fixing points. This makes the pair suitable for heavier garden gates, driveway access gates and substantial side gates weighing up to the stated 50kg capacity. Galvanised steel construction provides corrosion resistance for outdoor installations, while the lift-off arrangement allows the gate to be removed in the open position for maintenance. These are fixed hinges, so accurate positioning and a sound, correctly installed gate post are essential.
What’s Included:
Toggle• 2 x 450mm (18″) Cranked Bands
• 2 x Hook-On Plates
• 1 x Pack of Required Fixings
You May Also Need:
Toggle• Compatible timber gate
• Suitable timber gate posts
• Gate latch or catch
• Brenton padbolt or other locking device
• Drop bolt for a double-leaf gate
• Post mix for installing new gate posts
Key Features:
Toggle• Suitable for timber gates weighing up to 50kg
• Longer bands distribute the load across more of the gate framework
• Cranked shape allows the gate face to sit flush with the post
• Hook-on plates provide secure mounting to timber gate posts
• Lift-off design simplifies gate removal for maintenance
• Galvanised finish provides corrosion resistance for outdoor use
• Supplied as a complete pair with the required fixings
• Suitable for new installations and replacement gate hardware
Frequently Asked Questions:
ToggleQ. What weight of gate can these hinges support?
A. The stated maximum gate weight is 50kg. The gate width, construction, wind exposure, post strength and installation quality should also be considered.
Q. Why choose the 450mm version instead of the 300mm version?
A. The longer bands distribute the load over a greater area, making them better suited to larger or heavier timber gates.
Q. What does the cranked design achieve?
A. It offsets the hinge pivot so the closed gate can sit flush with the front face of the supporting post.
Q. Can the gate be removed after installation?
A. Yes. The gate can be lifted from the hook plates while open, providing sufficient clearance is available above it.
Q. Can these hinges be adjusted after fitting?
A. No. They use fixed hook-on plates, so accurate alignment is required during installation. Adjustable band and hook hinges are preferable where future realignment may be necessary.
